PILOTFUSE 315

Name: PILOTFUSE 315
SKU: CABC00002
Availability: InStock

Price range: 110,00 € through 315,00 €

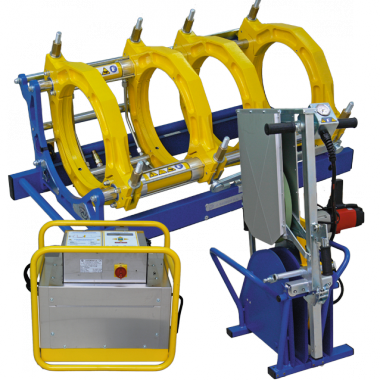

The PILOTFUSE 315 is an automatic butt welding machine for polyethylene pipes ranging from 110 to 315 mm in diameter. The CNC unit controls and monitors the automatic welding process according to the pre-programmed standard. It also allows for managing the type of PE, pipe diameter and thickness, as well as the traceability of data such as welding cycle, operator, location, and pipes. This data is available on a USB stick.
PILOTFUSE 315 is supplied with:
• steel construction
electric rabbit
• heated mirror
• CNC hydraulic power unit
• support for work and mirror
Available options:
reduction shells
- collar tray
• support rollers
• wheel kit
Wooden crate
Recommended generator set: Plutonelec 60

Product sheet Catalogue

SKU: CABC00002 Category: Automatic

Description
Additional information

Description

Welding diameter :	110-125-140-160-180-200-225-250-280-315 mm
Power supply :	230V / 50-60 Hz
Total absorbed power	5.19 kW
Frame weight:	79 kg
Cylinder section:	8.46 cm²
Hydraulic power centre	0.8 kW
Hydraulic central weight	42 kg
Max. hydraulic power unit pressure :	160 bar
Heating mirror power :	3.24 kW
Weight of the heated mirror:	24 kg
Planer power:	1.15 kW
Weight of the plane:	27 kg
Stand weight :	16 kg
Total weight:	188 kg
Overall dimensions:	1200x1000x950 mm
